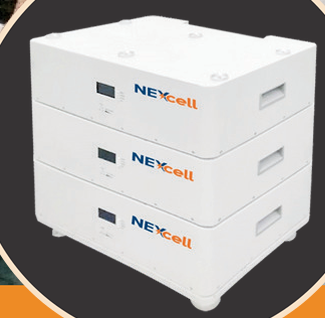

Power Cube
Power Cube
定價
Rs.0.00
售價
Rs.0.00
定價
單價
每
Type
Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Designed for commercial and large-scale energy storage, the Powercube series provides a robust solution for business continuity and peak demand management. It’s highly customizable, allowing enterprises to tailor energy storage based on their specific requirements.
SPECIFICATION:
Modular design for scalability.
Long cycle life, ideal for frequent and high-capacity usage.
Integration options for renewable energy sources.
| Model | Powercube-5 | Powercube-10 | Powercube-15 | Powercube-20 | Powercube-25 |
|---|---|---|---|---|---|
| System Demo | (image) | (image) | (image) | (image) | (image) |
| Battery Module | 5.12 | 5.12 | 5.12 | 5.12 | 5.12 |
| Battery module energy (kWh) | 5.12 | 5.12 | 5.12 | 5.12 | 5.12 |
| Voltage (V) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
| Capacity (Ah) | 100 | 100 | 100 | 100 | 100 |
| Number of battery modules | 1 | 2 | 3 | 4 | 5 |
| Capacity (kWh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 |
| Max. output power (kW) | 2.5 | 5 | 7.5 | 10 | 12 |
| Peak output power (kW, s) | 4.60 | 8.60 | 12.60 | 16.60 | 16.60 |
| Dimension (W/D/H) (mm) | 690/185/660 | 690/185/955 | 690/185/1250 | 690/185/1545 | 690/185/1840 |
| Weight (kg) | 68 | 118 | 168 | 218 | 271 |
| Nominal voltage (V) | 400 | 400 | 400 | 400 | 400 |
| Operating voltage range (V) | 380~550 | 380~550 | 380~550 | 380~550 | 380~550 |
| Battery type | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years |
