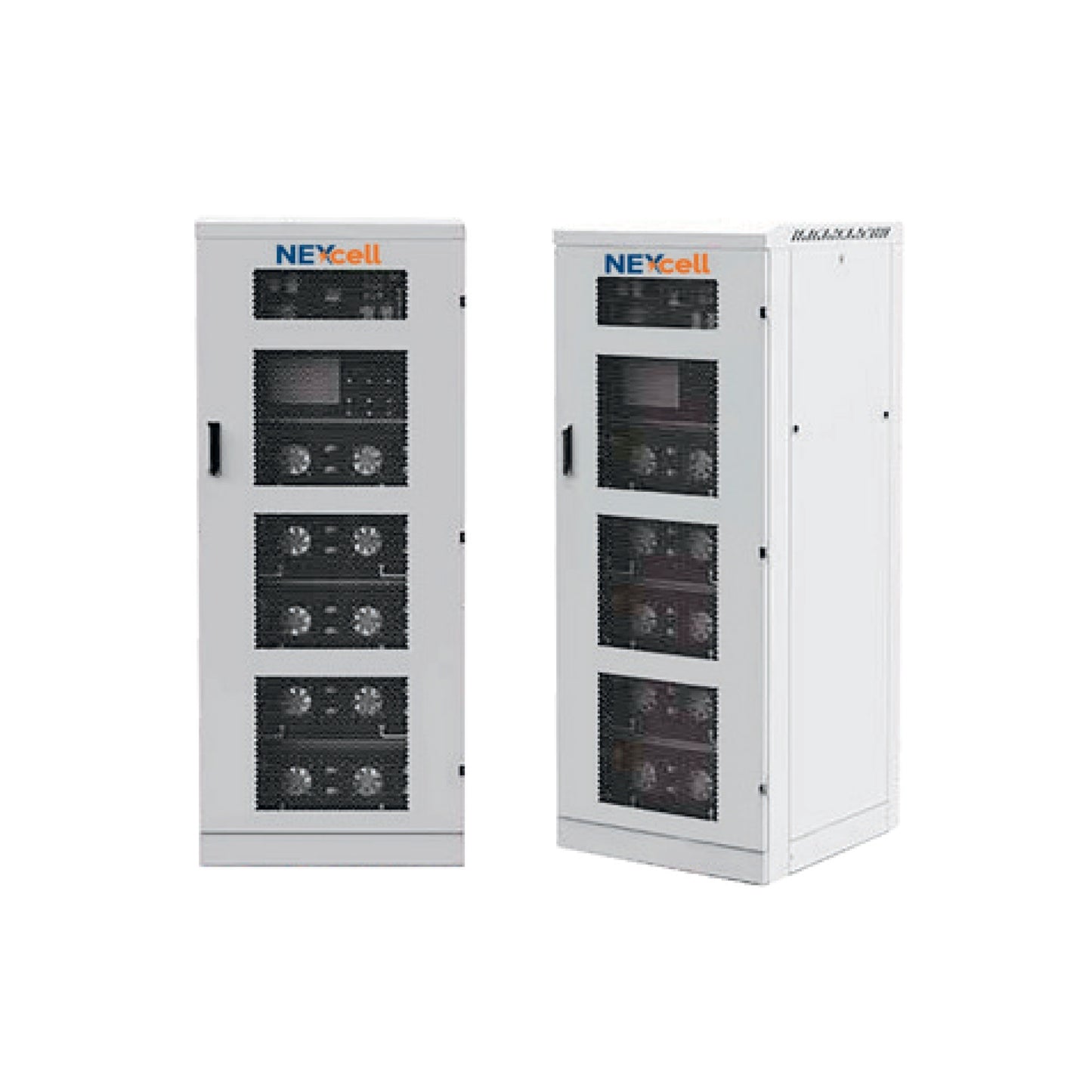

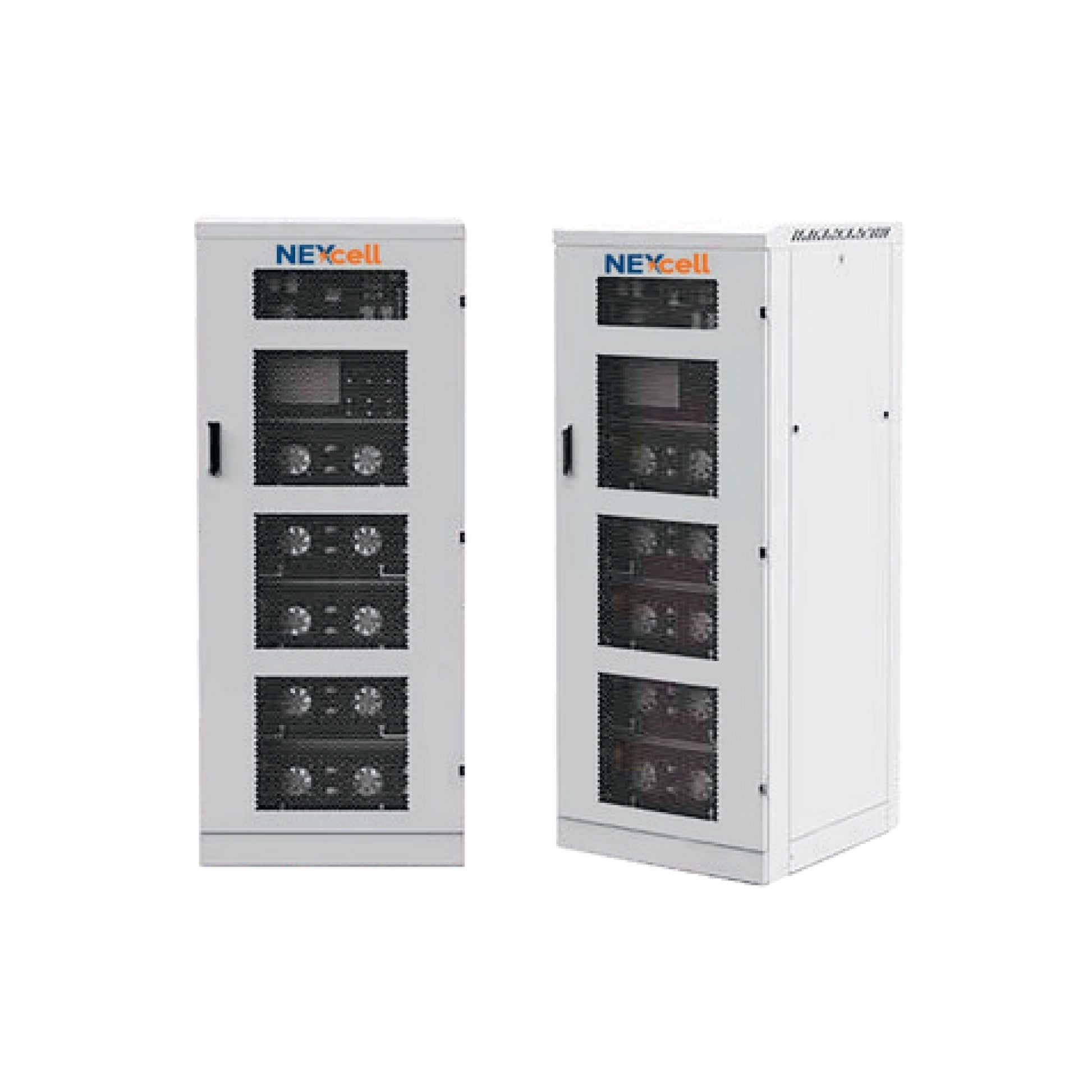

INDFORCE - EC50kw/100kWh

EC50kw/100kWh

The EC50kW/100kWh is a versatile and high-performance energy storage solution designed for commercial, industrial, and microgrid applications. Utilizing LiFePO4 battery technology, it ensures high safety, efficiency, and durability for long-term energy storage needs.

🔹 Battery Type: LiFePO4
🔹 Battery Energy: 98.88 kWh
🔹 Nominal Capacity: 206Ah
🔹 Rated Battery Voltage: 480V
🔹 Operating Voltage Range: 375V ~ 540V
🔹 Max Charging Current: 103A
🔹 Max Discharge Current: 103A
🔹 Storage Temperature Range: -20°C to 45°C (-4°F to 113°F)
🔹 Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)
🔹 Operating RH (Humidity): 10% ~ 90%
🔹 Storage & Transportation RH: 5% ~ 95%
🔹 Working Altitude: ≤ 3000m
🔹 Cycle Life: ≥ 6000 cycles (≥ 80% DOD @ 25°C)
🔹 Communication Type: CAN / RS485
🔹 Dimensions (LWH): 8308002100mm
🔹 Net Weight: ≈ 900kg
