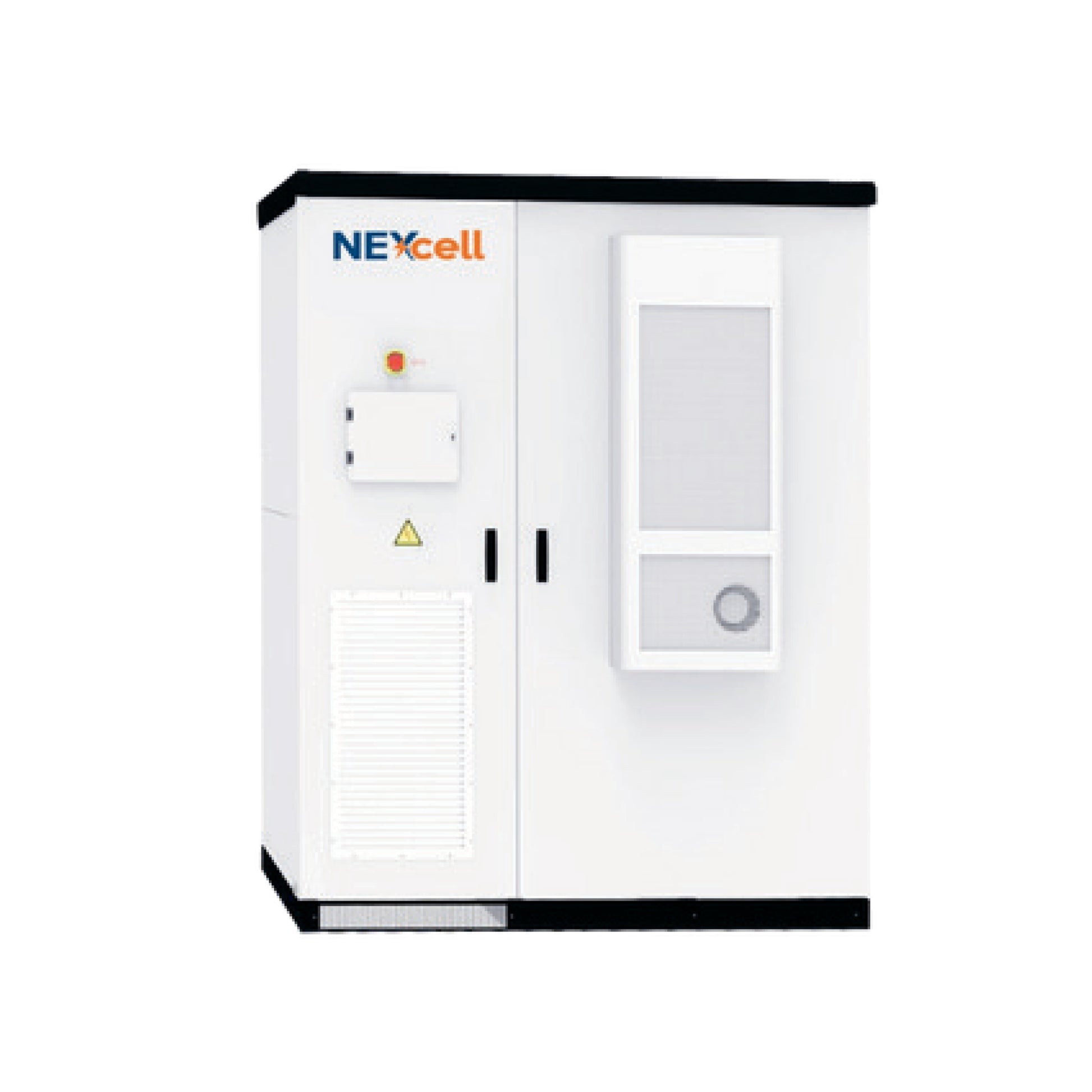

INDFORCE - EC100kw/215kWh

EC100kw/215kWh

The EC100kW/215kWh is a high-performance, large-scale energy storage system, designed for industrial, commercial, and grid applications. Built with LiFePO4 battery technology, it ensures long cycle life, high efficiency, and superior safety.

🔹 Battery Type: LiFePO4
🔹 Battery Energy: 215 kWh
🔹 Nominal Capacity: 280Ah
🔹 Rated Battery Voltage: 768V
🔹 Operating Voltage Range: 600V ~ 876V
🔹 Max Charging Current: 280A
🔹 Max Discharge Current: 280A
🔹 Storage Temperature Range: -30°C to 60°C (-22°F to 140°F)
🔹 Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
🔹 Operating RH (Humidity): 10% ~ 90%
🔹 Storage & Transportation RH: 5% ~ 95%
🔹 Working Altitude: ≤ 3000m
🔹 Cycle Life: ≥ 6000 cycles (≥ 95% DOD @ 25°C)
🔹 Communication Type: RS485 / CAN / LAN / Dry Contact
🔹 Dimensions (LWH): 150015392306mm
🔹 Net Weight: ≈ 3500kg
